New Version Quad core Android DVB-S2 Vigica C90S update firmware

Good news for everybody.

Quad Core Android tv box with DVB-S2 Vigica C90S, posted out one month, customer give us more suggestions and good idea. Now we post a newly firmware.

Please go to website download the newest firmware. Update the firmware your tv box.
http://www.smartvboxs.com/download.html

After you update, this is newly UI showing(how to update the firmware, please according the vigica c60s)



20150421 Version Firmware: update the kodi . 14.2 version

Add-ons

Kodi 14.2 update more add-ons , please enter , then can get the whole list, and you also can add the plugs by yourself.

20154021 Version firmware, we have added more language. specially for the DVB part. The customer can change freely.(English, Russia, Turkish, polish for DVB part, other language just now only for Android part, if you want in DVB part, please contact with service center, we can supply OEM and ODM service for you)

Russian,



Turkish

Polish

If you have any OEM/OEM Inquiry, please contact with us.

www.smartvboxs.com

Welcome to eBay Store: http://stores.ebay.com/Huazart-Technology#&panel1-1

Mobile phone as a remote control for android tv box vigica c60 and c70

Mobile phone as a remote control for android tv box vigica c60 and c70

Firslty, please download the applicaiton from the website,

http://www.smartvboxs.com/download.html

Then install the application on your mobile.



Open the SettingMbox in your tv box, connect your wifi, and also make your mobile phone in the same wifi connecting.



Open the advanced icon on menu, then make the Remote control Icon ON. It will show a IP address. Like following 192.168.0.20

Open your mobile phone, searching the server, can find the tv box address, connected,



The mobile will show a picture, like remote control, your mobile phone can be as a remote control to operate your tv box.

We can watch tv, video, surfing on line, also can modify the volume.

The mobile also can be as a mouse and keyboard, you can free switch by yourself.



It is very easy. Come on, take our your mobile phone and tv box.

How to use miracast functions about the vigica c60s?

Firstly, please take one vigica c60s device and another device support miracast functions.

Now we use Galaxy S4, the OS is android 4.4.2

Please connected with wifi firstly about tv box and cell phone.

Second, enter the applicaion for your tv box. Choose Miracast apk

We can rename the device.

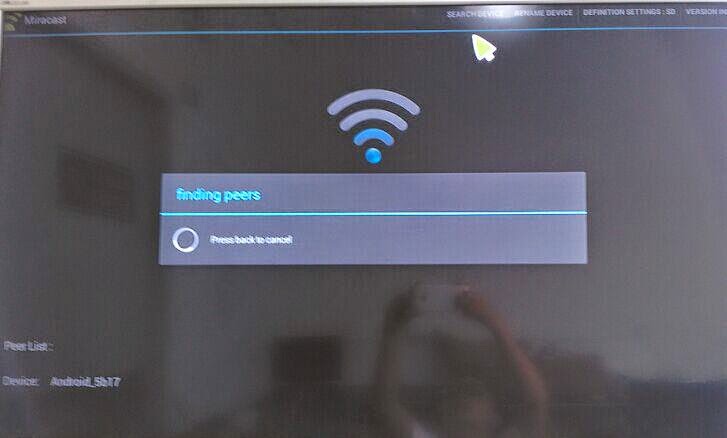

Finding peer, the device will scan the device.

Third. Enter the setting of the cell phone. The bottom will have a screen mirroring( share your device’s screen with another device.

The cell phone will scan the device.

The cell phone find the C60S, will send a invitation to the tv box. Accept the invitation.



then the C60S and cell phone will connect

Now you can share anything with your tv box

More details, please check www.vigica.cc

How to hide “home””back” bar on the bottom when you watching tv?

How to hide “home””back” bar on the bottom when you watching tv?

In this situation, the button on the bottom, It covers a part of the screen. It is very easy to make disappear for these button.

Please go to application in the box

Choose Settings Mbox, this status is off, you can see the bar on the bottom now.

Please make “Hide Status Bar” ON. The bar will disappear

Then you can back to check the status for the TV channel, like as following

Now the screen dont have that icon now, please try to do that now.

If you have the same questions for Vigica C60S, Vigica C60T, Vigica C70S, Vigica C70T, Vigica C70A,Vigica C90S and Vigica C90T, please try this method.

My facebook : https://www.facebook.com/wang.anna.963

How To Operation Your CCCam account on Vigica Tv Box

Until Now, Vigica Android & DVBS2 tv box have been posted out for a long time, the box have get more customers chasing, but how to operate the cccam.cfg, some customer still have some doubt.

C60S and C70S, please update the firmware to 20141205 version firstly.
this version you can upload more account by USB, usually named CCam.cfg.

the context list as following, please write like this (Please according your account, change the details, following just a example)
C: 11010.f3322.org 7650 50001023 27033 yes
C: 11010.f3322.org 7650 50001023 27033 yes
C: 11010.f3322.org 7650 50001023 27033 yes
C: 11010.f3322.org 7650 50001023 27033 yes
C: 11010.f3322.org 7650 50001023 27033 yes
....

Then please copy the CCcam.cfg files to the USB,

Connect the box with TV and Antenna, power on the Vigica tv box,

Go enter installation, then presss 111111, you can get the following menu.

Choose smart data



Please insert the USB to the box, press yellow buttom on remote control(Import), the account data will restore to the box.



If your box have already exited CCCam account, you also want this account in the box, please write this account to the files together, copy the files to the USB, then choose import.

Connect with internet, the account will connect successful.

Then you can open your scrambled channels



if you want to copy the CCcam account to other box, you can choose export, save CCcam account files to the USB. You can save the data to the PC.

Friend, if you still have trouble for this, welcome to chat with us.

My facebook : https://www.facebook.com/wang.anna.963

Vigica C90T, which is modest Box Android TV tuner, which is based on the system Amlogic S805

Readers of my blog and test equipment probably all too familiar with that interest me are part of, inter alia, various multimedia boxes that can turn the TV in a smaller or larger combine to play movies or music. We are constantly looking around for interesting solutions (not only) in this topic for a long time watching the international news describing products originating from China, and of course, online stores offer. Last intrigued me a rash design system based on Amlogic S805, usually available at a price to $ 40. Described below is sold Vigica C90T Although more expensive, but offers the occasion of the box built in TV tuner. In one fell swoop solve the problem with the old TV grandparents who also wanted to finally see what it is that the entire Internet, shop and praised Play Kodi.

C90s

First impression

The product comes in a simple cardboard box the color of our kraft paper mail. At the top we have the logo of the company selling the product, on the side of the QR code that leads to its website, from the bottom of the specification that quote right away, probably because most components currently interested readers:

CPU: Amlogic S805 Quad Core Cortex A5 up to 1.5 GHz
GPU: Mali-450 to 400 MHz
Memory: 1GB RAM, 8GB Nand Flash
System: Android 4.4.2 KitKat
Other: WiFi 802.11 b / g / n, Bluetooth 4.0, a DVB-T2




After opening the box no small surprise. It turns out that the product, which went on the market, different from the original design. It was to be a stylish combination of black and white in the case of housing and refreshed remote control, and in the meantime obtained entirely black device with a standard for this type of remote control equipment. With C90 writ large signs on the front, Vigica looks like any other TV tuner. Interestingly, the official website shows a photo of the current appearance of longer, so like everything's fine.


Shots of the manufacturer. The same, but different ... but in the end



Ekki device in the hands of a little creaks and housing parts fit leaves a bit to be desired, but there is no impression that it would soon crumble. Plugged reveals the presence of the LEDs on the inside, which glows red in standby and green while the pit. Unfortunately, there is no such thing as a display of the current time and also the way the channel indicator.

I immediately ran out of the USB port on the front or from the side. Only two in the back, which can make it difficult to use, eg. From a USB flash drive if the hardware place somewhere in the niche in the cabinet under the TV. Besides, we have a slot on the back of the antenna (IN and OUT), micro SD port, S / PDIF, 10/100 Mbps Ethernet, HDMI, plug the hole in the power supply and the labeled AV OUT. A special cable is connected here Component, if a receiver does not have HDMI, which is in the box, however, did not find it. In addition to the power supply and remote control only get a wire HDMI. The set closes quick reference guide, in chin-lish and outdated TV application description, because the hardware uses completely different. I was worried the lack of WiFi antenna, but as it turned out unnecessarily.



ANT IN ANT OUT, 2x USB, AV OUT hole, micro SD card slot, S / PDIF, LAN, HDMI

Do not judge by its cover

The device starts quite briskly, barely a few seconds displaying the inscription Vigica, then going to a well-known English users Android menu boxes with huge, colorful tiles. Another launcher does not retrofitted, but there is no problem with that. Bearing in mind that this was to be the age equipment users, even I did not think to change anything here, especially as easily added programs all talking icon to your home screen. After a second appka automatically turns on the TV.



This could be burying modify system files. Due to the lack of root and the default destination hardware, but not played with this. It is the same set up, however, once someone television programs to the exclusion of the LCN, or the automatic numbering of channels. There is this lucky enough west, which used interchangeably by Chinese producers program, but some time it eats. The application interface at the much clearer compared to competitive solutions. Amazingly, the tuner has a pretty decent sensitivity. For an ordinary wire, or just any antence, grabs Polish channels where other similar tuners simply surrendered. It is true that the image is pikseluje, but simply the cheapest room set with reinforcement that everything was as it should. Then there is a stable and clear except for TVP ABC, where there is a strange vibration at the top and bottom of the screen.



Hungry? eat KitKat

C90T Vigica comes with Android 4.4.2 in almost pure form. Apart from a handful in the world today niecenionych applications like Facebook, Twitter, Skype and Flickr, are also suddenly MX Player media player, Netflix, plus of course Kodi. Preinstalled version 14.0 RC could not be upgraded to the latest 14.2. With yet unexplored by me deeper reason, installed as a replacement for both versions 14.2 as well as 14.1, cause almost instant black screen and zwiecha device, which at 14.0 Kodi final but there is no space. It should be the occasion to point out that there are no problems with scaling of videos played in this Kodi while the hardware decoding, or problems with the rapid change of the aspect ratio.


With 8 GB of data is available to assist nearly 5 gigs of free space, inter alia, normally available applications from Google Play store. What is worth noting the curiosities, when connected to a box of the mouse, the store will roll scroll content Conversely, when moving up down ... In a Web browser and other applications is normal. System is running quite smoothly, as evidenced by the benchmarks:



                   Vellamo                                                   NenaMark2


      Epic Citadel                                                 AnTuTu 5.6.2


       3DMark                                                      An3DBenchXL


  Quadrant Standard Edition                                      Geekbench 3

In addition to these problems with Kodi, during use of the device there was nothing alarming. It does not heat up too much, and WiFi coverage is very good, even great, or even how to box without an external antenna. In my test point favorite at home, with the greatest accumulation of foreign networks, downloads reached almost half of the possibility of a link, and the upload was practically the maximum. The topic convenience, you should purchase the end-user in the wireless mouse, if you have already viewed videos on YouTube or websites. Using the remote control emulate the mouse is terribly tedious activity. With the bonus features, it is worth mentioning about the support for wireless image transfer (as Miracast) or the option to bring your portable hotspot. Forget about playing materials in 2K or 4K resolutions, because the equipment used to deal with it can not handle. With Full HD, there is no problem, however, have to respect that, and so everything is scaled from / to 720p, which in all we really enjoyed all the applications installed here.


    AnTuTu Video Tester                               Informacje o systemie

Vidzita, co eyes

So the construction of the most recommended, is not necessarily a given manufacturer. Based devices used here Amlogic S805 is to choose the color, in a variety of prices, and they will behave in a manner similar to that described by me just the model. This also gives ample opportunity for the use of alternative versions of the software, if someone wants to play in changing the functionality of his box of uploading his files from another. Worth a look around for opportunities, not necessarily on the Polish Internet auctions, because in many cases with free shipping from abroad, and this promotional codes, discount will be odd tricks, how to bring something of yourself.

Answers to readers' questions:

1. There is no Euro connector?

This kind of boxes do not tend to have the Euro. You can connect the ankle for / grommet Euro to a special (purchased separately) Component cable, that plugs the hole AV OUT.

2. There is access to YouTube?

It is, among others, using a standard YouTube app is available from Google Play. This is the same used in smartphones and tablets. Unfortunately, not very convenient remote control of the use. You definitely need a mouse or remote control with motion sensor (ie. AirMouse).

3. Does this model works stably with Kodi?

Like I said, there are problems with Kodi 14.1 and 14.2, which hang the device. With version 14.0 no such trouble. But I guess this will be fixed soon.

4. If I plug in the box to a computer monitor of the remote control I can control the brightness of the screen?

Found no such possibility. In the display settings do not have to adjust the brightness.

5. What are the exact dimensions of the unit?

18 x 12 x 3.5 centimeters.

Reprinted from TomisH (redakcja).
